Duration: 3 Month, 3 Day in a Week.
Eligibility: (Dip/Deg) Engineers from E&C / EXTC / Electrical / Instrumentation

Submit Your Enquiry

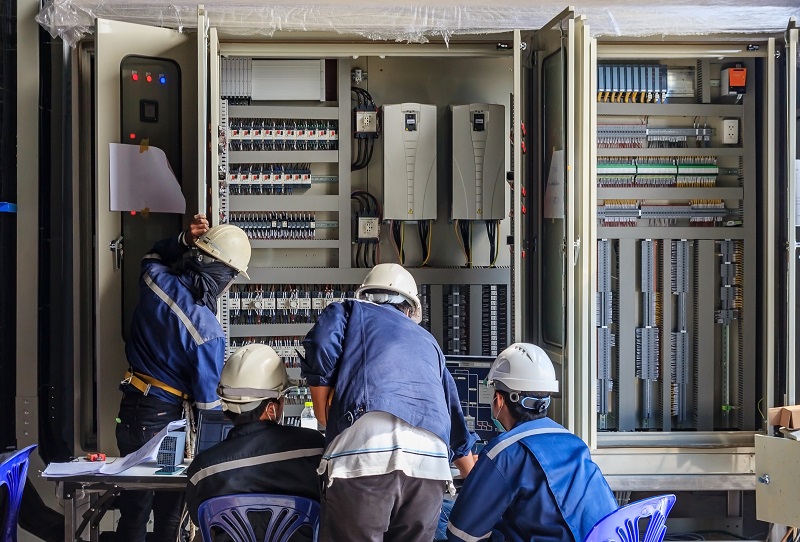

Control Panel


  • Introduction to plant electrical layout & distribution
  • Details and functions of various electrical control panels used in industries
  • Detailed practical on electrical switchgear
  • Practical wiring of DOL, RDOL and Star Delta starter
  • Live MCC panel testing on AC 3 phase 440 Volts for power and control circuits of DOL, RDOL and Star Delta
  • Creating electrical diagrams & drawings
  • Reading MCC electrical drawings
  • Troubleshooting faults in MCC panel
  • Creating interlocks for different plant panel operation

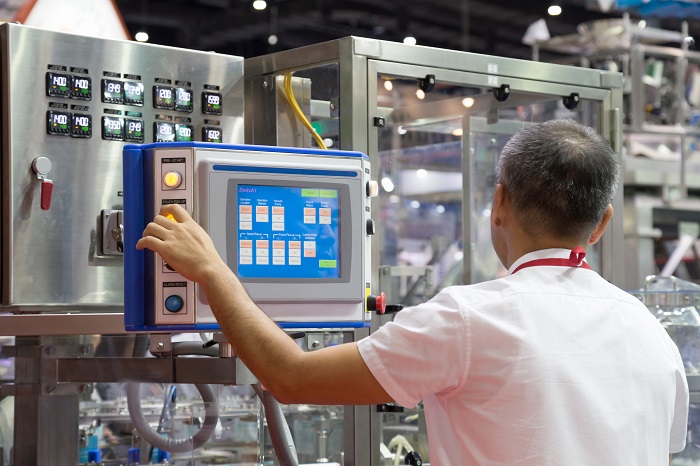

SCADA & HMI Workshop


  • Introduction & details of SCADA software system and its features
  • How to select a SCADA software with different packages and tags
  • Creating a project in SCADA software
  • Creating tags, real time trends & historical trends
  • Creating process alarm summary & historical summary
  • Creating recipe for different product manufacturing
  • Writing scripts for a plant & process MIMIC
  • Interfacing SCADA software with Microsoft Excel
  • Interfacing MIMIC with PLC ladder logic with Ethernet & RS232/USB ports
  • Introduction to HMI hardware & its feature with complete family range
  • How to estimate the HMI project
  • How to select HMI for a project
  • Creating screen for Plant MIMIC in HMI
  • Creating real time, historical & alarm summary
  • Connecting live project on Ethernet with PLC ladder logic


Autocad Workshop


  • Introduction to AUTOCAD electrical designing software
  • Practical hands on different drawing tools of AUTOCAD
  • Designing control circuits of DOL, RDOL and Star Delta starters
  • Designing power circuits of DOL, RDOL and Star Delta
  • Creating BOM / GA for project management in the software


Eplan Workshop

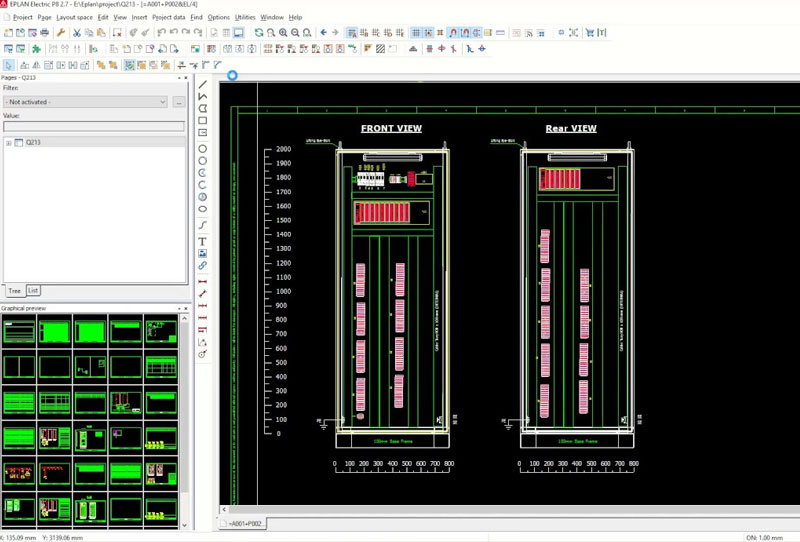

  • Introduction to EPLAN Electrical design software with all features
  • Understanding of electrical switchgear layout
  • Creating a new project in EPLAN P8 software
  • Creating project hierarchy for a plant project
  • Creating project page for control circuit
  • Creating project page for power circuit
  • Creating part data for the selection of switchgear




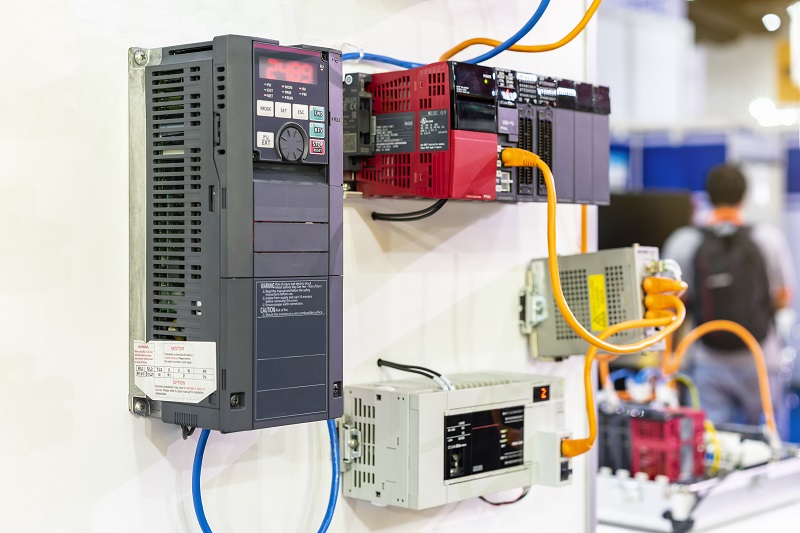

PLC Workshop


  • Introduction to PLC hardware and their functions
  • Complete knowledge of PLC manufacturers family
  • How to select a PLC according to project and its requirement
  • PLC hardware & its component practical understanding
  • PLC wiring with field sensors & output relay
  • Introduction to PLC software with detailed understanding
  • Programming Ladder Logic with different industry examples
  • Ethernet IP addressing of PLC
  • Interfacing live ladder logic project with SCADA & HMI
  • Interfacing PLC with GSM module & matrix display




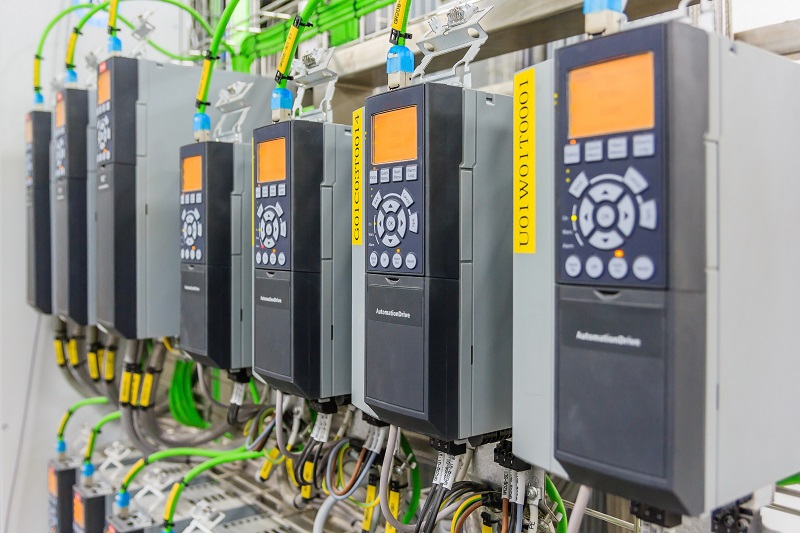

Industrial AC Drives & Motors


  • Introduction to AC motor & its different components
  • Complete introduction to Siemens AC Drive hardware & software
  • Creating a project in Siemens Starter software
  • Configuring AC Motor with AC Drives using the starter software
  • Creating logics for AC motor controls through software
  • Controlling the speed, direction through BOP & Software
  • Live working on machine for cut to length and winder un-winder
